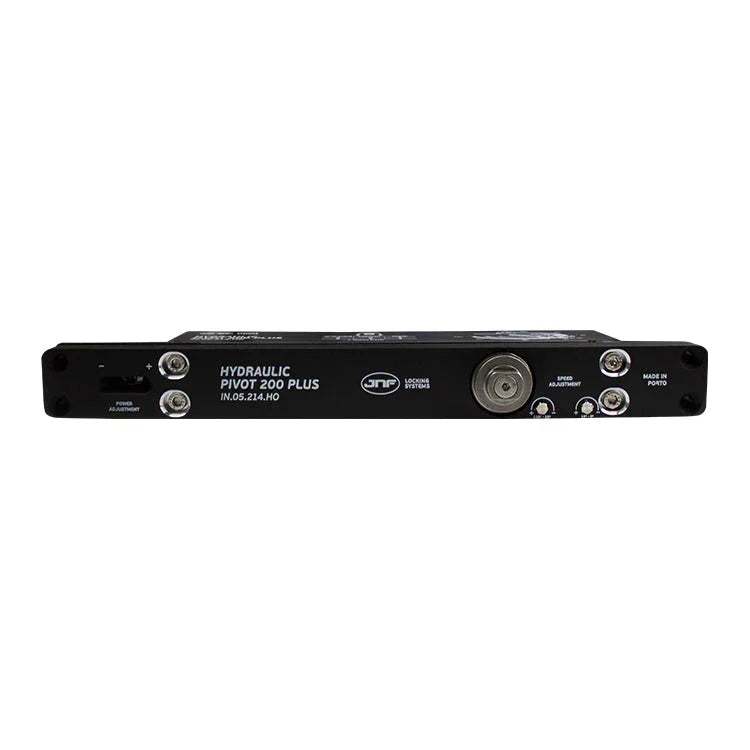

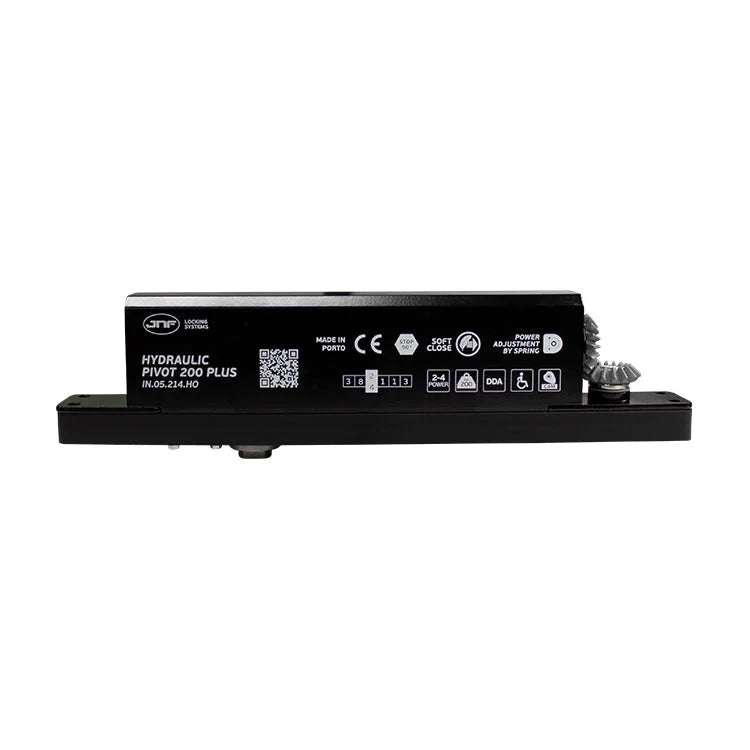

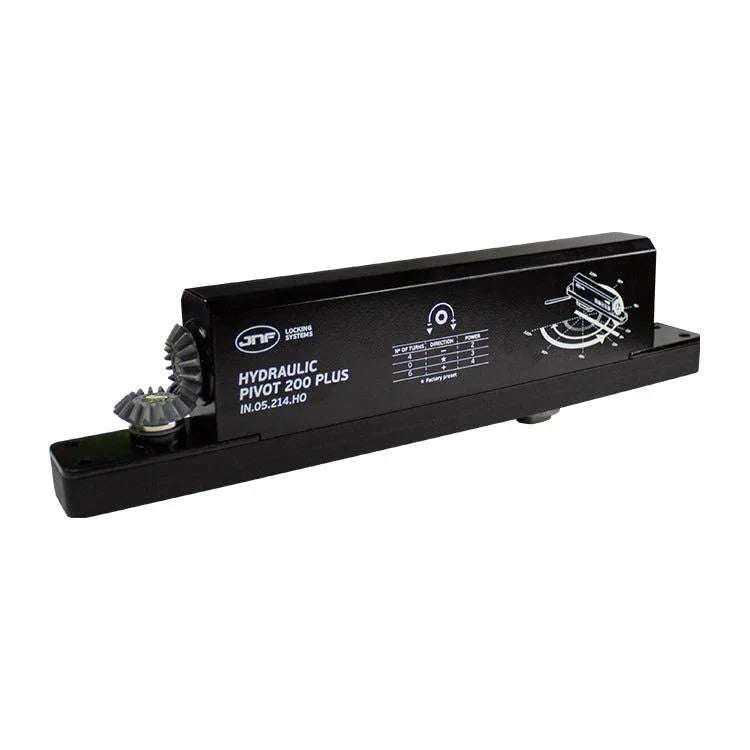

The CAM SYSTEM combined with hydraulics allows the closing control of large swing doors while opening them with little effort. The doors can be single or double-action, with a thickness of 40mm and up.

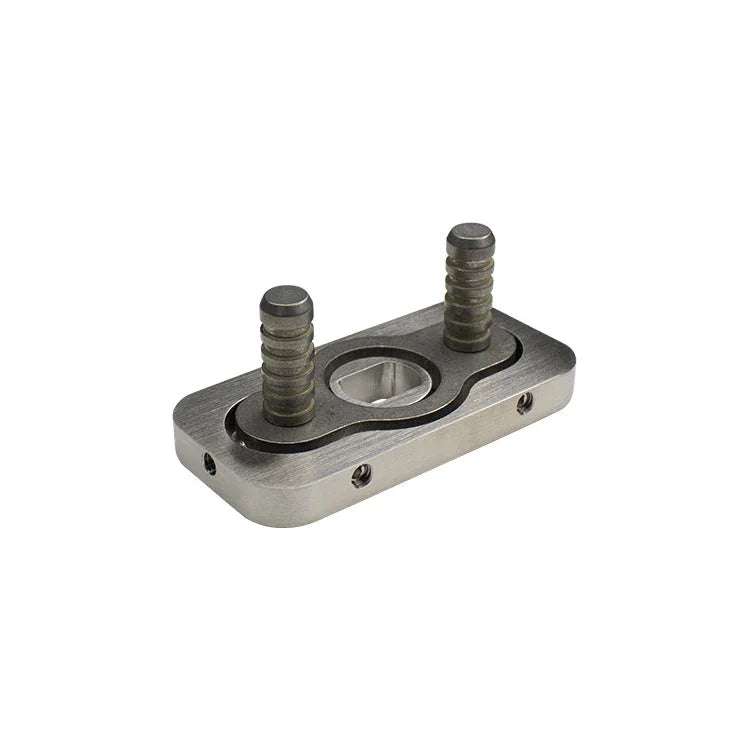

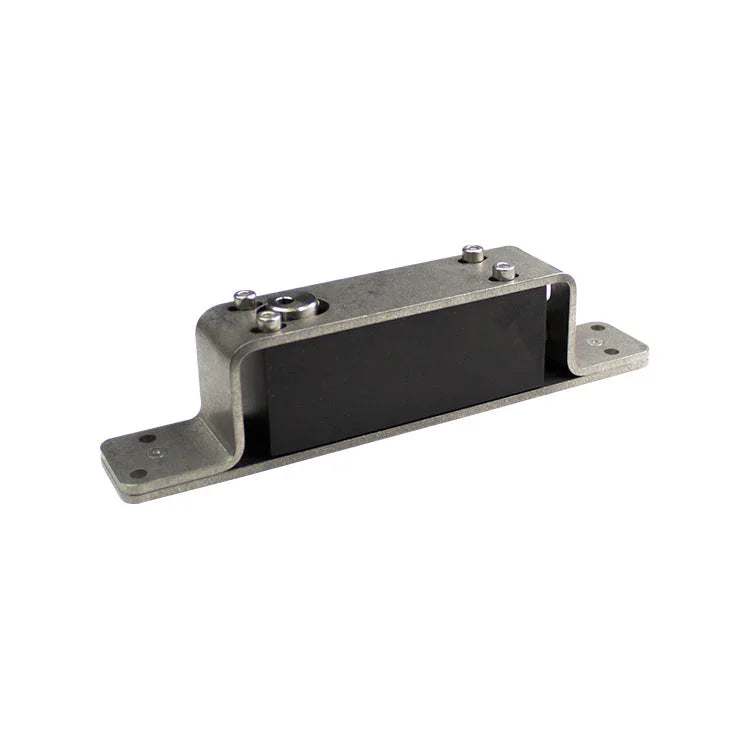

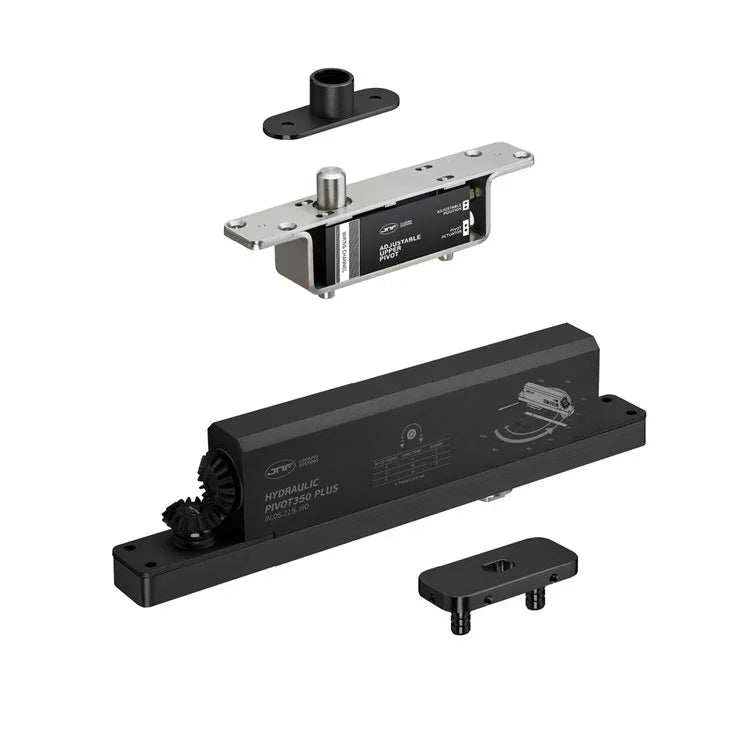

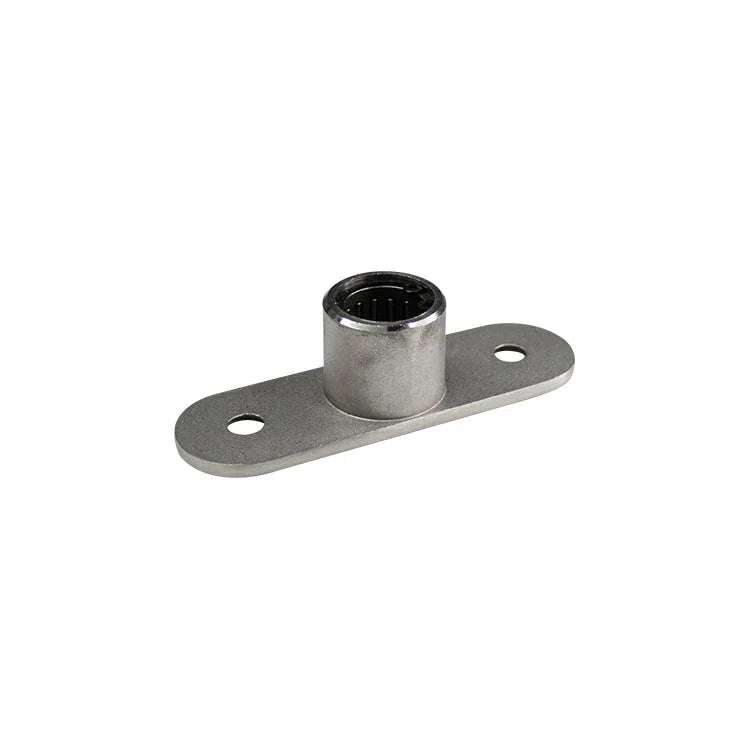

The system is hidden inside the door, with only a small base on the floor, with bidirectional regulation. It also features a rotation point on the roof or upper frame of the door with a built-in bearing. The closing control is carried out by two valves that can precisely adjust the initial speed, final closing speed, and the absolute speed.
This pivot can hold any weight from 40 to 200 kg, lengths up to 3000mm and heights up to 4000mm. The system has force adjustment, which can be adjusted with the door already installed.

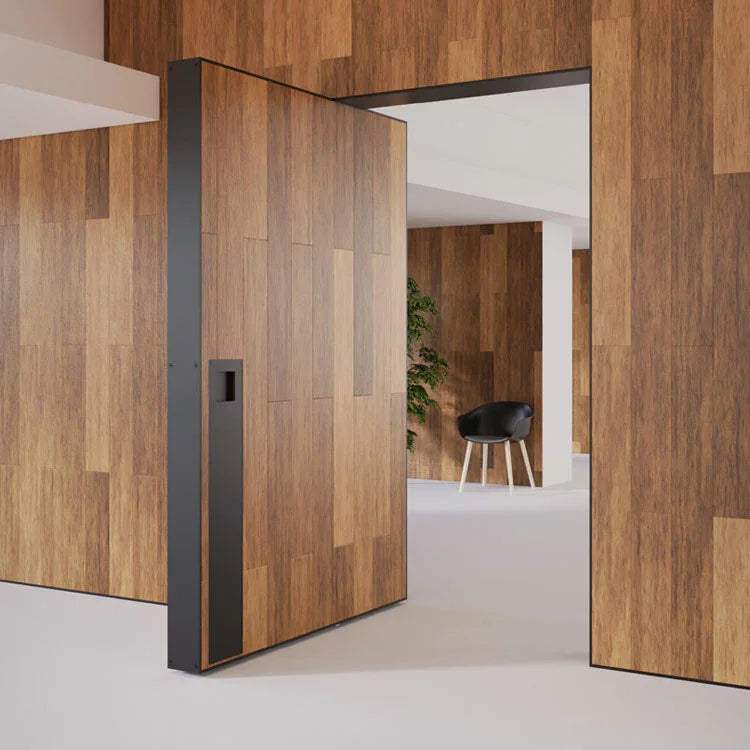

An additional characteristic of this system is that the rotation point of the door can be from 40mm to the centre of the door, with the installation being made from the top of the door, which allows the door to go up to the ceiling.

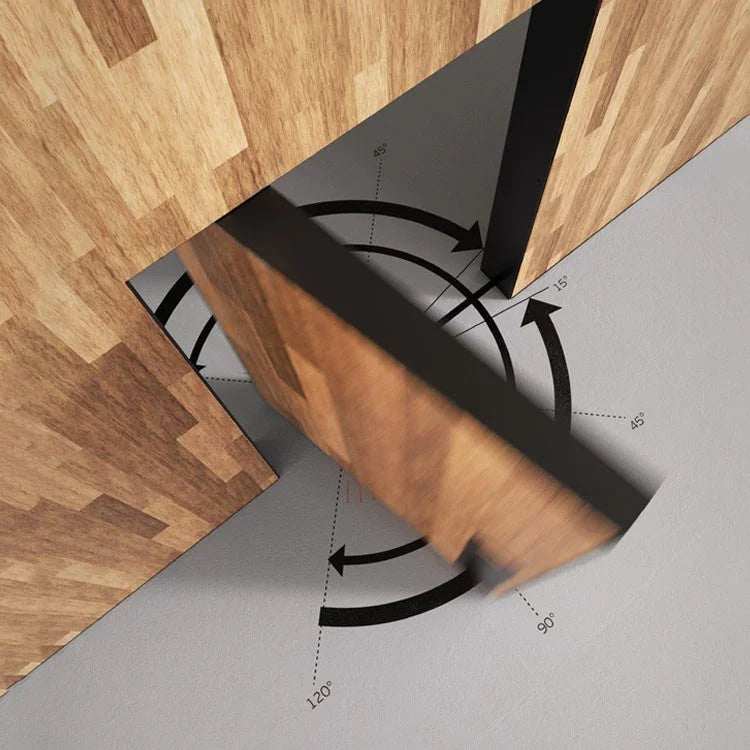

90° Hold Open
Soft Close
Suitable for door thickness 40mm and up
Maximum weight: 440 Lb (200 Kg)
Maximum door width 3000 mm
Maximum door height 4000 mm
