HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500
HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500

HEAVY DUTY DOOR PIVOT - MAX. 1100 LBS - STAINLESS STEEL - MOD. JK05500

✔ Product highlights

$1,285.39 $0.00 /
Subscription

Estimated shipping to the united states 3-5 days.

Bank holidays, national holidays and peak seasonal shipping periods will produce longer delivery times.

Shipping cost is calculated in the checkout.

Complete set of pivot for single or double action doors. 3D adjustment system. All components in stainless steel. With bearings in the upper and lower pivot. International patent.

Material base: 304 Stainless Steel
Complete set for a door
Easy-fit
3 Way Adjustable
Max. door width: 59-1/16”
Max. load capacity: 1102Lb
Heavy weight bearing pivot
Min. door thickness: 1-9/16”
Range of movement 360°

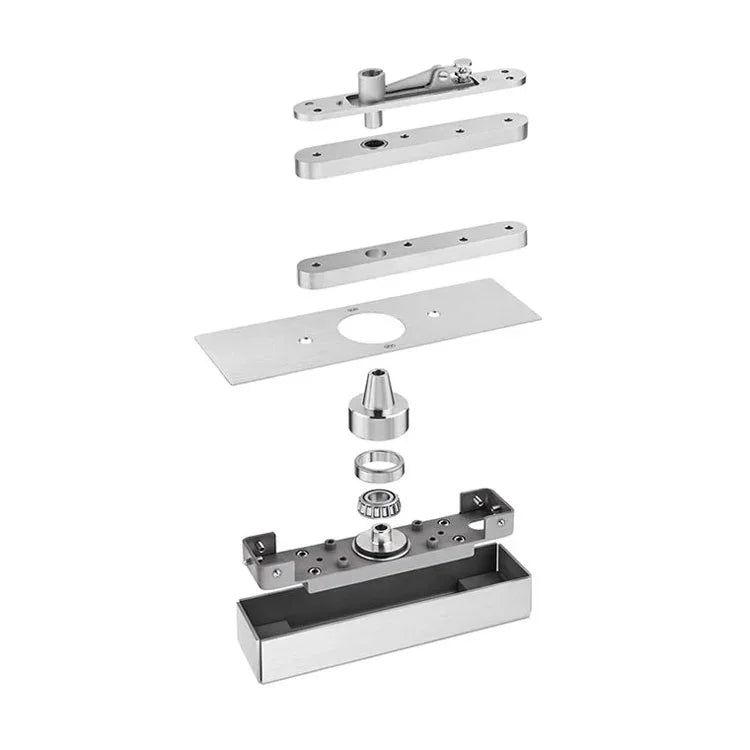

• Stainless steel body made by investment casting.
• Lever shaf system that allows aesy installation of the door.
• Reinforced fixing bases to ensure a strong attachment to the door and top frame.
• 3D Adjustment system. Allows to adjust the position of the pivot in 3 axes.
• Stainless steel cover with 2mm. Allows access to the interior of the box to adjust tha door without having to remove it.
• High precision and capacity tapered roller bearing. Eliminates gaps and ensures a very smooth and quiet function.
• Box to embed the pavement made in stainless steel.

DATA SHEET
