Base material: Stainless steel 304

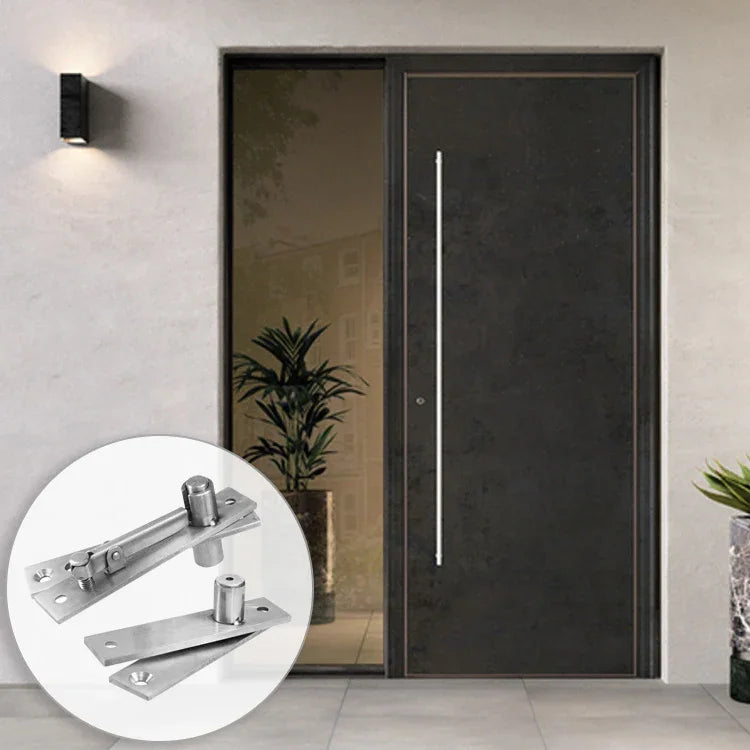

Flush concealed pivot hinge for single or double-acting doors.
Max. load capacity: 176 lbs (80Kg)
Center hung.
Top pivot features adjustable axes for easy installation.
Ball bearing bottom pivot
Consider 1 set per door
Min. door thickness: 30 mm (1-3/16”)
Max. door width: 900mm (35-7/16”)

DATA SHEET
