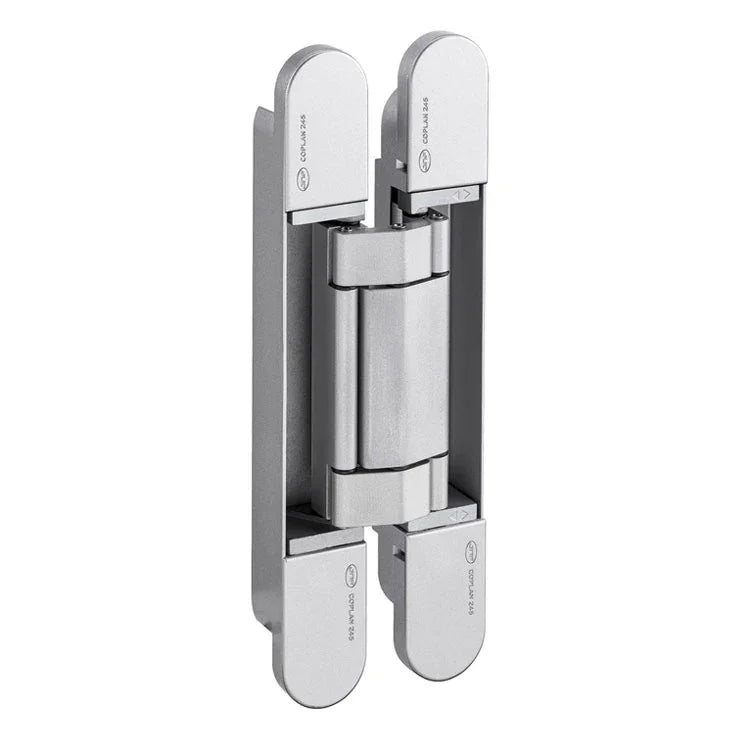

Concealed hinge with 3D Adjustment
Invisible hinge for heavy-duty doors manufactured entirely in plastic/aluminum with stainless steel covers

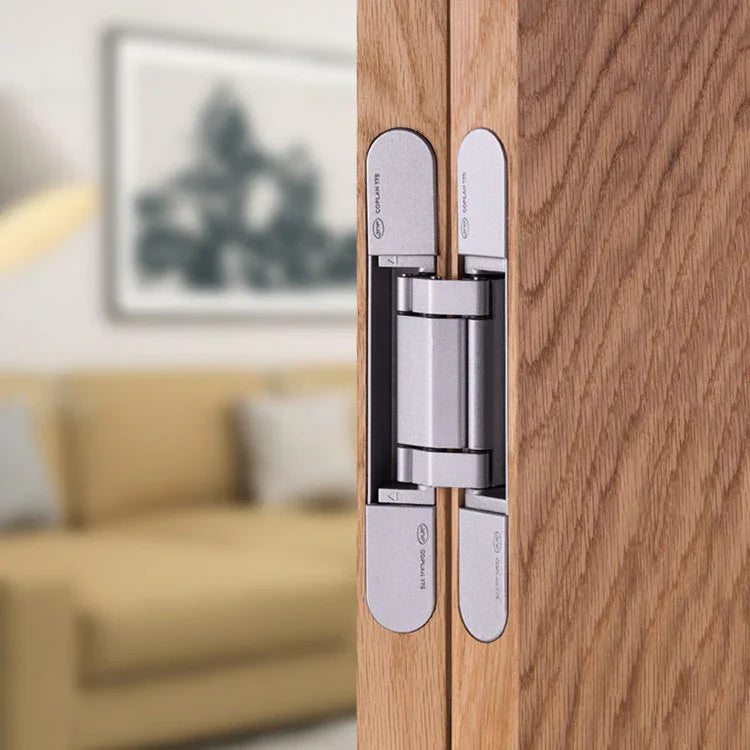

For use in interior or exterior doors
Minimum door thickness: 1-3/4”
Weight capacity: 286 Lb (2 hinges) 352 Lb (3 hinges)
100,000 cycle tested heavy duty
Manufactured entirely in aluminum
with stainless steel covers

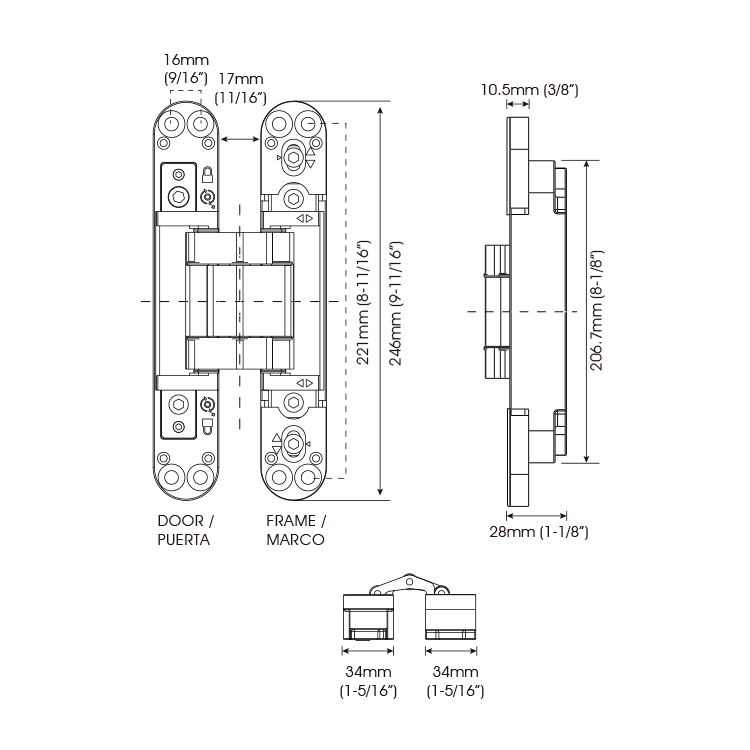

| Fabrication material |
Aluminum |
| Hinge height |
9-11/16" |
| Frame width |
1-5/16" |
| Panel/door width |
1-5/16" |
| Frame depth |
1-1/8" |
| Panel/door depth |
1-1/8" |
| Horizontal regulation |
± 1/16" |
| Vertical regulation |
± 1/8" |
| Depth regualation |
± 1/8" |

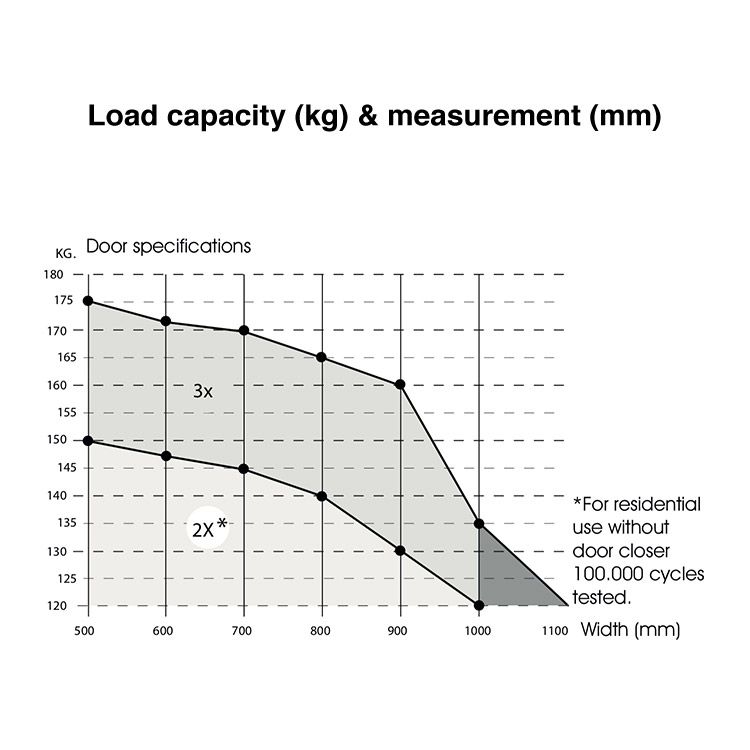

| Loading capacity x2 hinges |
286 Lb |
| Loading capacity x3 hinges |
352 Lb |
| Certifications |
Fire proof |
| Door type |
Wood |
| Minimum door thickness |
1-3/4" |
DATA SHEET
