Concealed hinge with 3D Adjustment

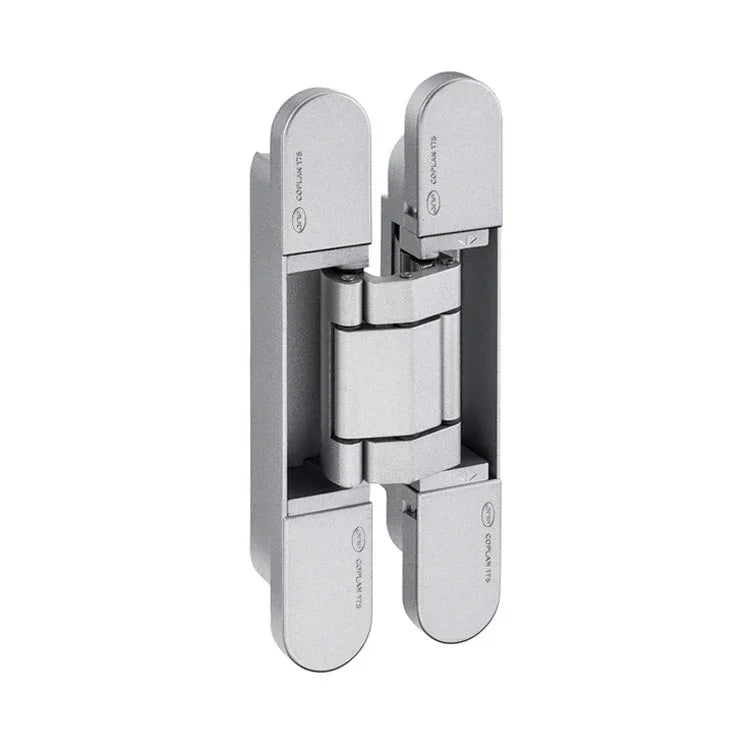

Invisible hinge for heavy-duty doors manufactured entirely in plastic/aluminum with stainless steel covers

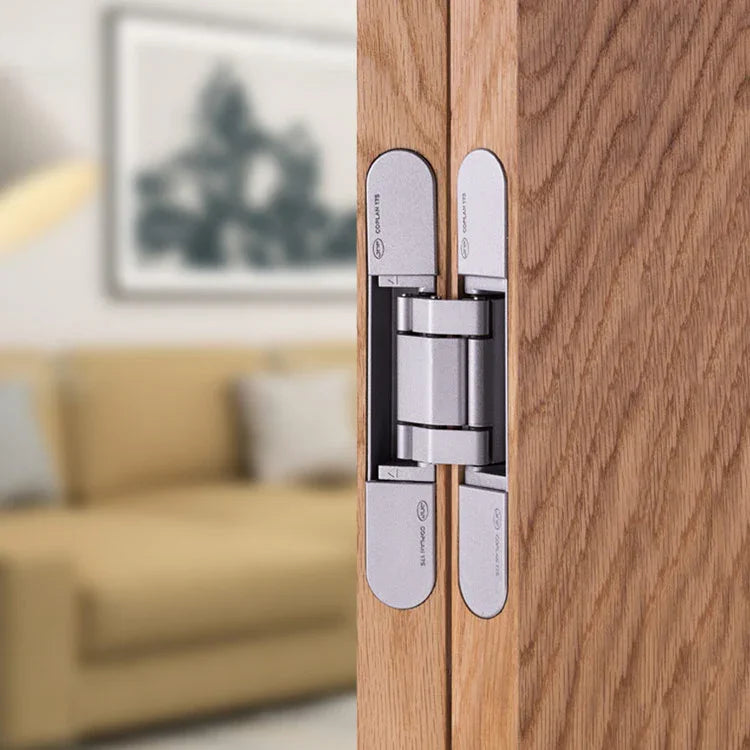

For use in interior or exterior doors
Minimum door thickness: 1-9/16”
Weight capacity: 176 Lb (2 hinges) 198 Lb (3 hinges)
| Fabrication material |
Aluminum |
|
Hinge height |
6" |
| Frame width |
1" |
| Panel/door width |
1" |
| Frame depth |
15/16" |
| Panel/door depth |
15/16" |
| Horizontal regulation |
± 1/16" |
| Vertical regulation |
± 1/8" |
| Depth regulation |
± 1/8" |
| Loading capacity x2 hinges |
110 Lb |
| Loading capacity x3 hinges |
132 Lb |
| Certifications |
Fire proof |
| Door type |
Wood |
| Minimum door thickness |
1-3/8" |
DATA SHEET
