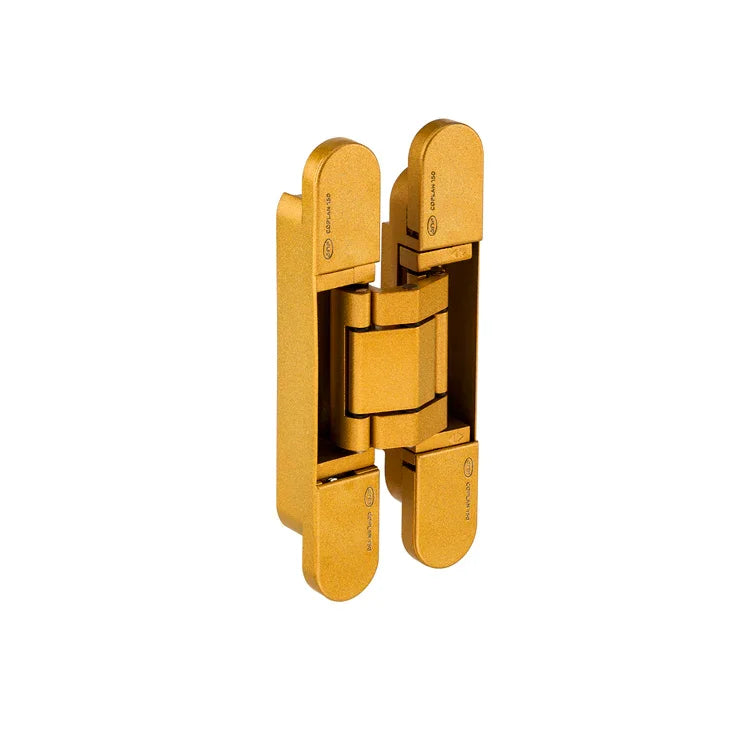

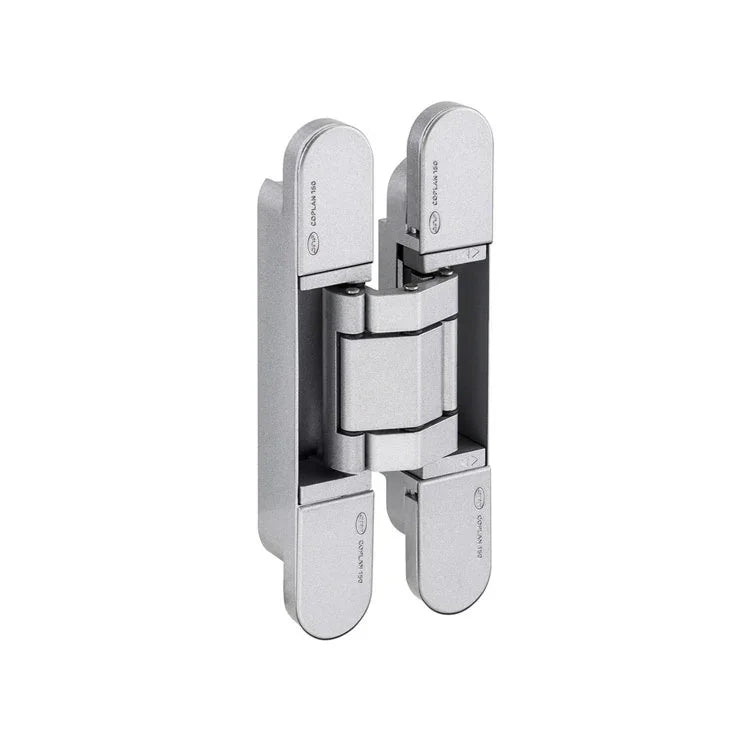

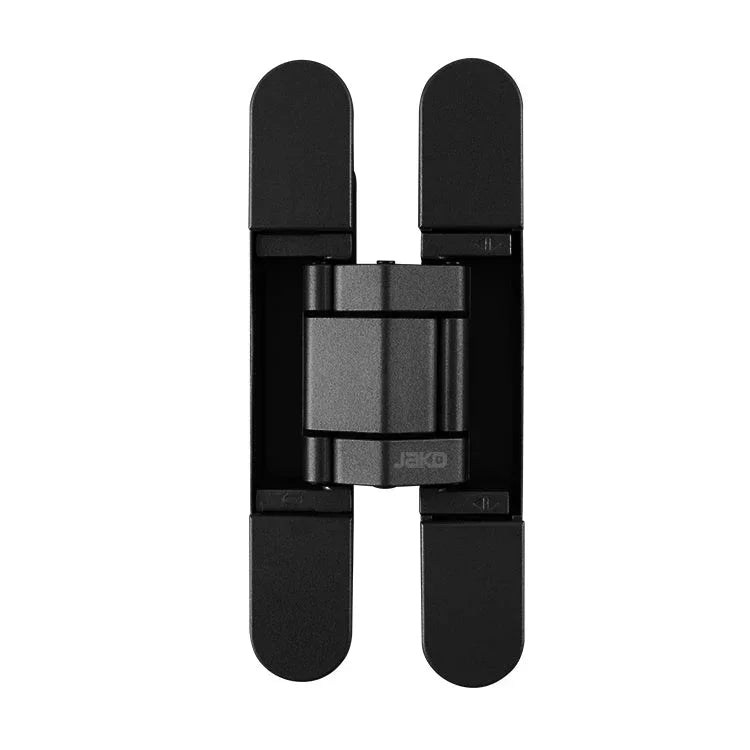

3 WAY ADJUSTABLE CONCEALED HINGE 6" MOD. JK05061

Concealed hinge with 3D Adjustment
Invisible hinge for heavy-duty doors manufactured entirely in plastic/aluminum with stainless steel covers
For use in interior or exterior doors
Minimum door thickness: (1-3/8”)
Weight capacity: 110 Lb (2 hinges) 132 Lb (3 hinges)
Patent: 002708347-0001

Fabrication material	Aluminum
Hinge height	6"
Frame width	1"
Panel/door width	1"
Frame depth	15/16"
Panel/door depth	15/16"
Horizontal regulation	± 1/16"
Vertical regulation	± 1/8"
Depth regulation	± 1/8"
Loading capacity x2 hinges	110 Lb
Loading capacity x3 hinges	132 Lb
Certifications	Fire proof
Door type	Wood
Minimum door thickness	1-3/8"

DATA SHEET

3 WAY ADJUSTABLE CONCEALED HINGE 6" MOD. JK05061

✔ Product highlights

$69.50

 - $73.50

~~$0.00~~ /

Select an option to add this to your cart

FINISH : BLACK : SILVER : GOLD

Estimated shipping to the united states 3-5 days.

Bank holidays, national holidays and peak seasonal shipping periods will produce longer delivery times.

Shipping cost is calculated in the checkout.

3 WAY ADJUSTABLE CONCEALED HINGE 6" MOD. JK05061

Fabrication material	Aluminum
Hinge height	6"
Frame width	1"
Panel/door width	1"
Frame depth	15/16"
Panel/door depth	15/16"
Horizontal regulation	± 1/16"
Vertical regulation	± 1/8"
Depth regulation	± 1/8"
Loading capacity x2 hinges	110 Lb
Loading capacity x3 hinges	132 Lb
Certifications	Fire proof
Door type	Wood
Minimum door thickness	1-3/8"

DATA SHEET

3 WAY ADJUSTABLE CONCEALED HINGE 6" MOD. JK05061

3 WAY ADJUSTABLE CONCEALED HINGE 6" MOD. JK05061

DATA SHEET
