Product details
Description
Base material: Plastic/ aluminum with stainless steel covers
Concealed hinge with 3D Adjustment
Invisible hinge for heavy duty doors

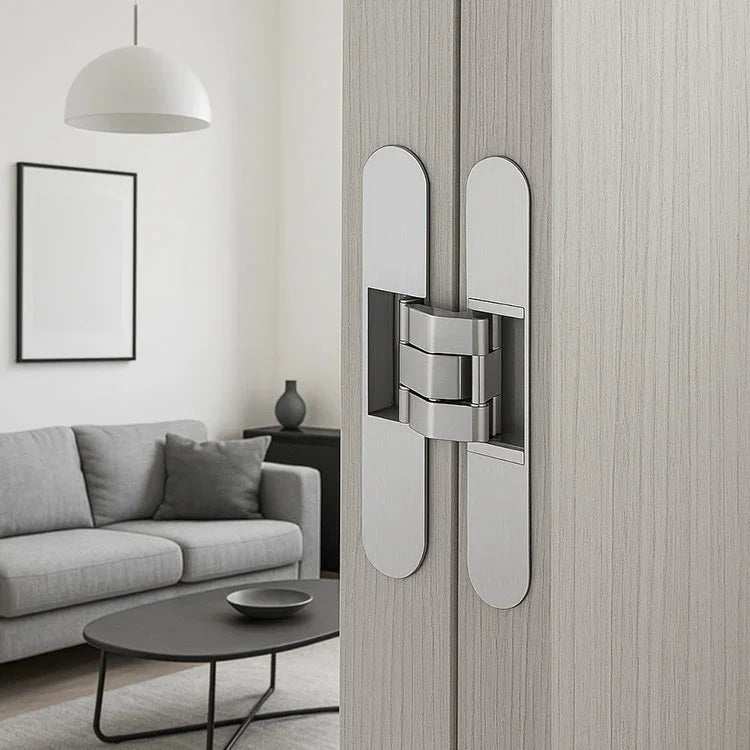

For use in interior or exterior doors
Max. opening angle of 180 degrees
Min. door thickness: 1-9/16”
Weight capacity: 132 Lb (2 hinges) 176 Lb (3 hinges)
| Fabrication material | Aluminum |
| Hinge height | 6-7/8" |
| Frame width | 1-3/16" |
| Panel/door width | 1-1/8" |
| Frame depth | 1" |
| Panel/door depth | 1" |
| Horizontal regulation | ± 1/16" |
| Vertical regulation | ± 1/8" |
| Depth regulation | ± 1/8" |
| Loading capacity x2 hinges | 176 Lb |
| Loading capacity x3 hinges | 132 Lb |
| Certifications | Fire proof |
| Door type | Wood |
| Minimum door thickness | 1-9/16" |
| Maximum door opening angle | 180 degrees |
DATA SHEET
JAKO HARDWARE

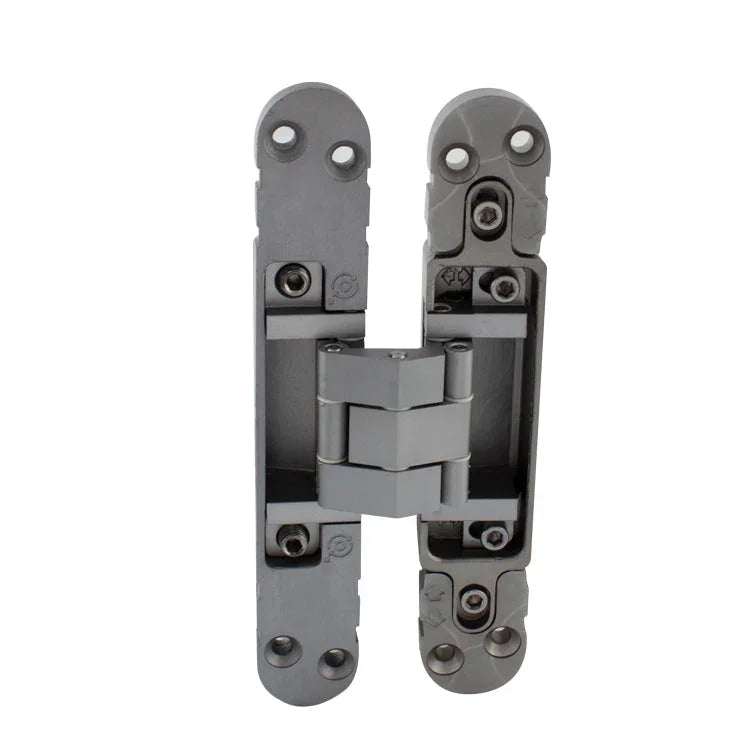

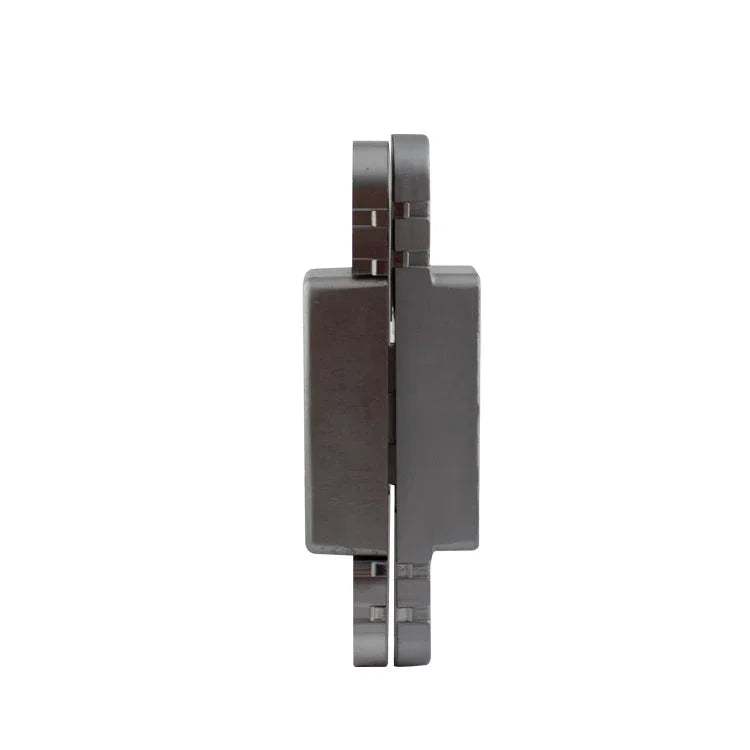

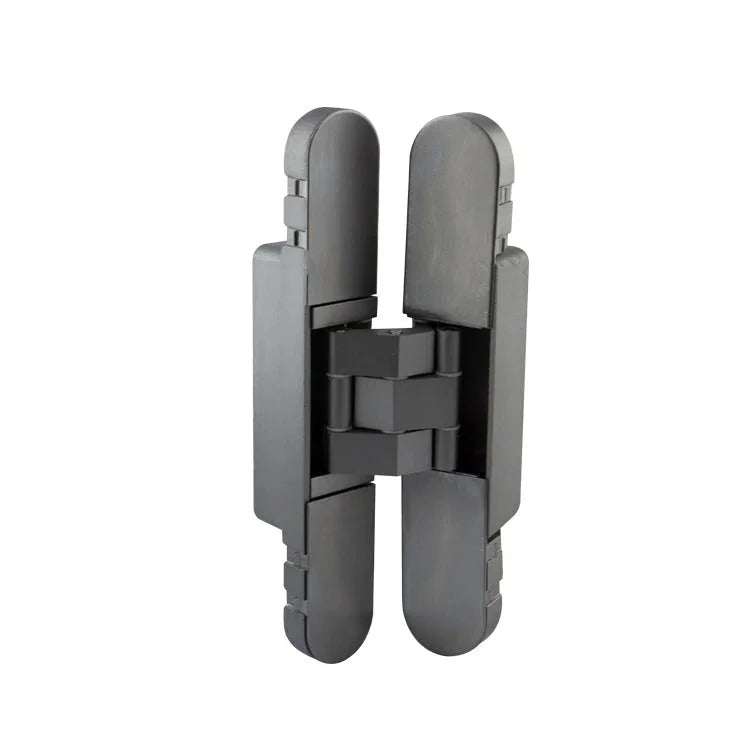

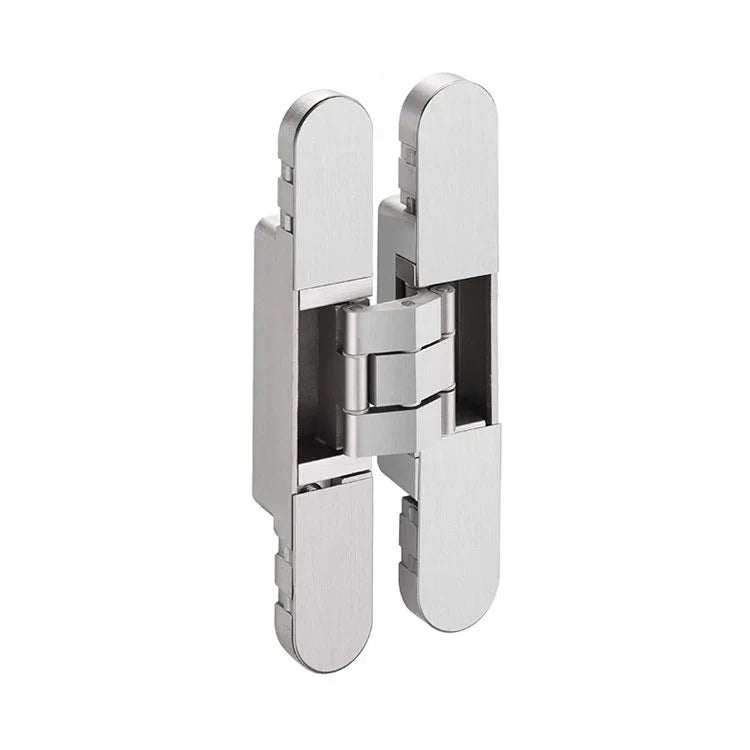

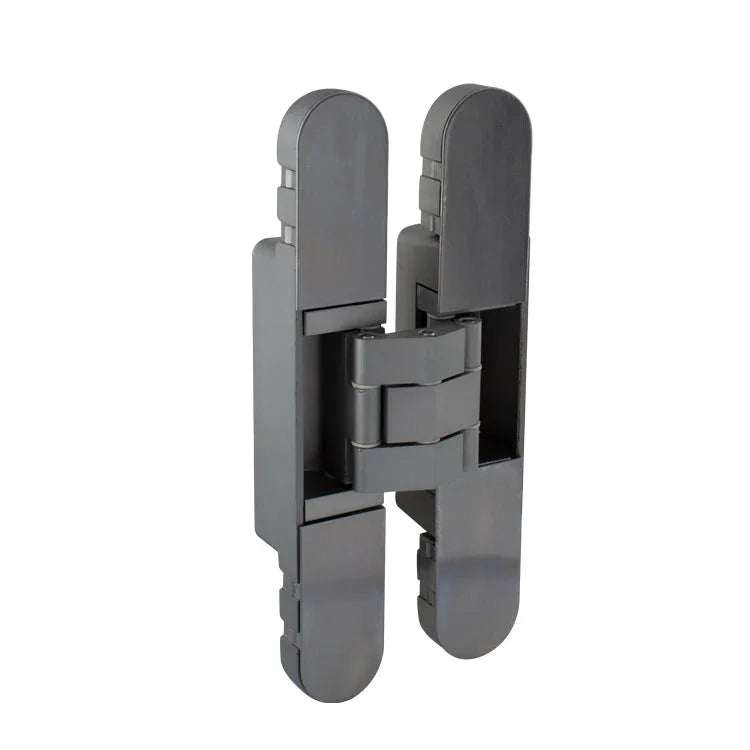

3 WAY ADJUSTABLE CONCEALED HINGE 6-7/8" JK05055
Price:
$137.21
